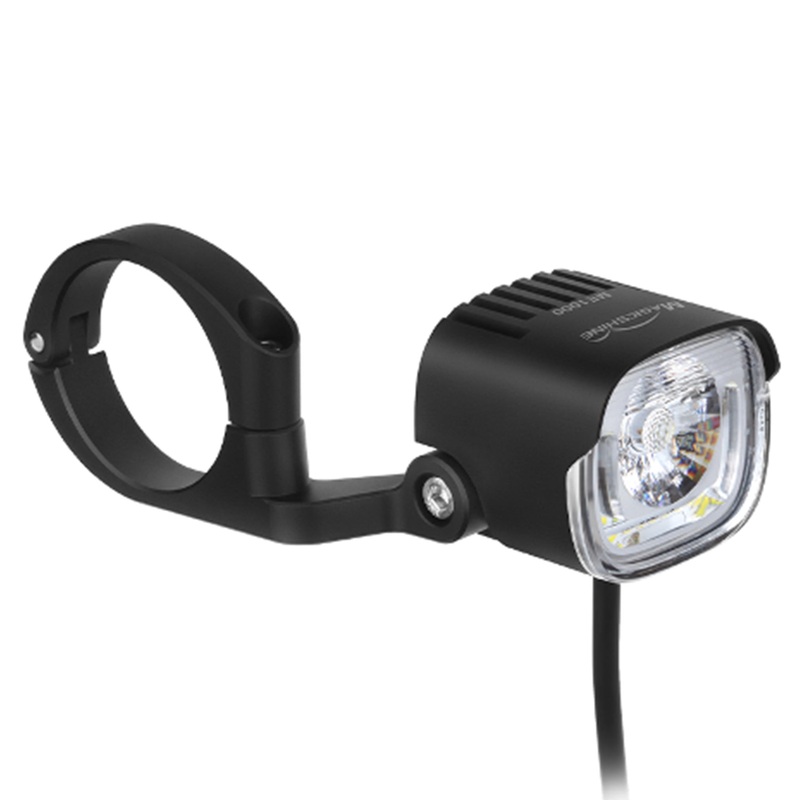

Introducing the Magicshine E-Bike ME1000 Front Light – the ultimate lighting solution for e-bike riders. Powered through the battery/motor system (compatible with Shimano, Bosch, Broser, Yamaha), this front light eliminates the need for traditional onboard batteries.

Enhance your road presence during the daytime with the always-on Daytime Running Light, consuming minimal power. As daylight fades, the light automatically switches to full power mode using ambient light detection. The ME1000 also features side lighting and anti-glare technology, ensuring optimal safety in all weather and road conditions.

The adjustable light head provides a wide arc of lighting area, with up to 45 horizontal and 90 vertical adjustability. The vertical light is diffused to reduce blinding effects for oncoming traffic, while the side lighting enhances visibility for traffic alongside the rider.

Crafted with a durable one-piece aluminium alloy housing, the ME1000 integrates seamlessly with its one-prong aluminium mount. It can be installed on either side of the stem on the handlebar without the need to remove grips, shifters, or brake levers. This design provides exceptional stability (compatible with 31.8mm and 35mm handlebars).

With its smart thermal protection circuit and excellent heat dissipation properties, the ME1000 ensures maximum output levels throughout your ride, protecting internal components from overheating. The seamless design also offers an IPX6 waterproof rating, keeping the light functional even in wet conditions.

The ME1000 is compatible with various output specifications (6-12V range) from most manufacturers. It automatically detects the system output and adapts to the available power, whether it’s 6V or 12V from Bosch, Shimano, Brose, Yamaha, or others. To install the ME1000 on your e-bike, simply purchase the appropriate motor cable (sold separately) and follow the instruction guide.

Technical Specifications

• Max output: 1000 Lumens
• Distance: 140m
• Beam Intensity: 4,900 CD
• IPX6 Waterproof
• Dimensions: 40 x 36 x 36 mm
• Weight: 92g
• Drop test: 1m
