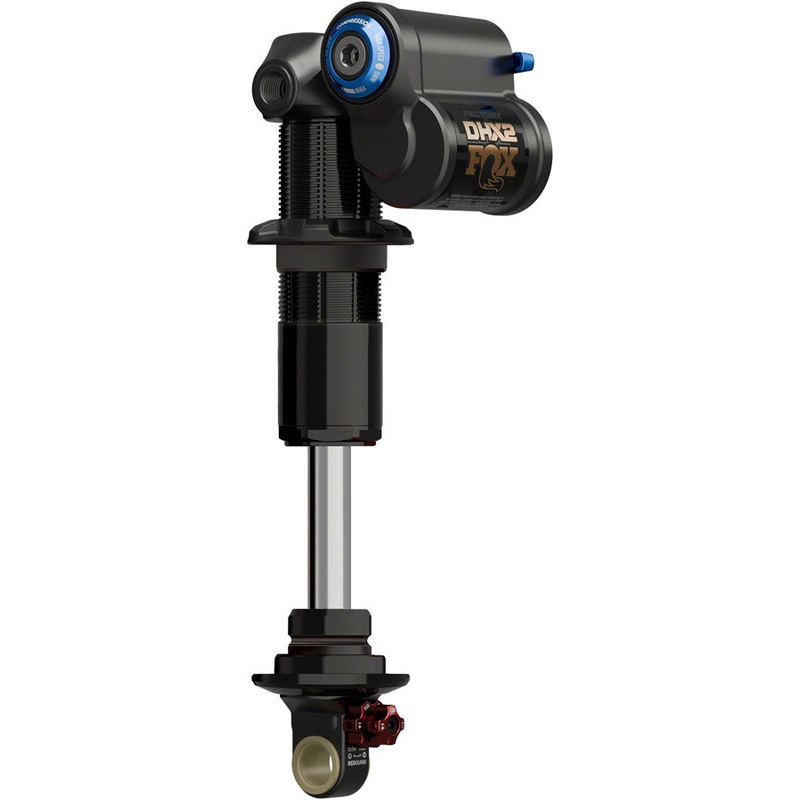

FOX DHX2 Factory Rear Shock – Trunnion Metric 205 x 60 mm 2-Position Lever Hard Chromoly Damper Shaft. The World Cup proven DHX2 is full of features delivering ultimate performance and control when the trail gets steep. Nothing sticks to the ground quite like a coil shock. The DHX2 takes the coil sensation and adds sophisticated damping a massive overall tuning range and super low-friction internals for the ultimate gravity racing shock.

• TECH SPECS

Stroke (mm) 60Lockout Switch Shock Mounted SwitchEyelet Diameter (mm) Trunnion 12.7External Adjustments Coil PreloadExternal Adjustments High Speed Compression DampingExternal Adjustments Low Speed Compression DampingExternal Adjustments Rebound DampingPositive Spring CoilEye to eye length (mm) 205keyword search FOX Model Year 26 FOX MY26

The World Cup proven DHX2 is full of features, delivering ultimate performance and control when the trail gets steep. Nothing sticks to the ground quite like a coil shock. The DHX2 takes the coil sensation and adds sophisticated damping, a massive overall tuning range and super low-friction internals for the ultimate gravity racing shock.

• The FOX DHX2 rear shock shares the same revolutionary 4-way adjustable monotube architecture as new FLOAT X2 platform in a silky-smooth coil spring variant (Coil Spring Sold Separately)
• 4-way adjustable high and low speed rebound and compression
• X2 has a new larger base valve with more individual valves and is combined with a pressure balanced tune for increased support, without harshness
• More supportive Firm mode on independent circuit, now with lever detents Variable Valve Control (VVC) on high-speed rebound for race-level performance in any situation
• Detents on spring collar to low preload without coil migration
• MCU bottom out bumper for bottomless end-stroke gives riders the support and control needed on bigger hits and bottom out events

Item Specifications
External Adjustments	Coil Preload
External Adjustments	High Speed Compression Damping
External Adjustments	Low Speed Compression Damping
External Adjustments	Rebound Damping
Eye to eye length (mm)	205
Eyelet Diameter (mm)	Trunnion, 12.7
keyword search	FOX Model Year 26 , FOX MY26
Lockout Switch	Shock Mounted Switch
Positive Spring	Coil
Stroke (mm)	60

FOX DHX2 Factory Rear Shock Rear Shock UPC: 821973510408
