2025 Transition Relay Alloy Deore E-Bike Sea Salt

2025 Transition Relay Alloy Deore E-Bike Sea Salt

$5,999.00 $145.00

Key FeaturesTransition Relay Hydroformed Aluminum frame (2025) with 160mm of GiddyUp Horst-Link rear suspension.Lightweight and powerful Fazua Ride 60 e-bike system (60 Nm torque, 430 Wh capacity) with tool-free battery removal.Versatile "Mule" setup: Can

Color:
Size:
SKU: DDV9029090347 Category:

Key Features

  • Transition Relay Hydroformed Aluminum frame (2025) with 160mm of GiddyUp Horst-Link rear suspension.
  • Lightweight and powerful Fazua Ride 60 e-bike system (60 Nm torque, 430 Wh capacity) with tool-free battery removal.
  • Versatile “Mule” setup: Can be ridden with or without the battery installed, drastically reducing weight.
  • Capable suspension handled by the RockShox Psylo Gold RC fork (160mm) and Super Deluxe Base rear shock.
  • Reliable Shimano Deore 1×12-speed drivetrain and powerful Deore M6120 4-piston hydraulic disc brakes with 203mm rotors.
  • Aggressive Maxxis tire pairing: Assegai (front, 2.5″) and Minion DHR II (rear, 2.4″).
  • Size-specific wheel sizing: 27.5″ on XS and 29″ on SM-XXL (mullet compatible via flip chip).
  • Features a long-travel SDG Tellis dropper post (up to 230mm drop on XL/XXL).
  • Frame includes molded protection and a Lifetime Warranty.

Full Specifications

Product Transition Relay Alloy Deore E-Bike
Model Year 2025
Intended Use Enduro / All-Mountain
Rider Unisex
E-Bike Class Class 1: Pedal Assist (Pedelecs)
Motor Fazua Ride 60, 60 Nm max torque, 250 W continuous power, 450 W peak power
Battery Fazua Energy, integrated, removable, 430 Wh capacity
Max Speed with Assist USA/Canada/New Zealand: 20 mph (32.2 km/h) / Other: 15.5 mph (25 km/h)
Display/Remote Fazua LED Hub 5-bar battery/mode top tube display with device charging port, Fazua Ring Controller remote switch
Modes Breeze, River, Rocket, Walk Assist, plus Boost function
Frame Material Aluminum
Frame Material Details Hydroformed alloy, molded down tube and chainstay protection
Rear Travel 160mm (Upgradable to 170mm with 65mm stroke shock)
Rear Shock RockShox Super Deluxe Base, trunnion mount, 205mm x 60mm stroke
Fork RockShox Psylo Gold RC, 35mm stanchions
Fork Travel 160mm
Head Tube Diameter Tapered, 56mm upper, 66mm lower
Headset FSA No.55R, ZS56 upper, ZS66 lower
Handlebar Race Face Chester 35, 780mm width, 35mm clamp
Rise: 20mm (XS/SM), 35mm (MD-XXL)
Stem Race Face Aefect R, 40mm length, 35mm bar clamp
Grips ODI Elite Flow, lock-on
Brakes Shimano Deore M6120, 4-piston
Rotors Shimano RT66, 203mm
Brake Levers Shimano Deore M6100
Drivetrain 1x
Shifters Shimano Deore M6100, 12-speed, I-SPEC EV
Front Derailleur None
Rear Derailleur Shimano Deore M6100, 12-speed, SGS cage
Chainguide None
Cranks Race Face Aeffect Alloy ETOR
Length: 160mm (XS), 165mm (SM-XXL)
Chainrings e*thirteen Helix Race, direct mount, 32 tooth
Bottom Bracket (Assumed to be Fazua-specific for the motor)
Pedals None
Chain Shimano Deore M6100, 12-speed
Cassette Shimano Deore M6100, 10-51 tooth, 12-speed
Rims WTB ST i30 Alloy, 30mm inner width
Hubs Novatec D791SB-B15 (15 x 110mm front), D902SB-B12 (12 x 148mm rear) with MICRO SPLINE driver
Spokes Pillar, double-butted
Tires Front: Maxxis Assegai, EXO, TR, 2.5″
Rear: Maxxis Minion DHR II, EXO, TR, 2.4″
Saddle SDG Bel-Air V3
Seatpost SDG Tellis dropper
Drop: 125mm (XS), 150mm (SM), 170mm (MD), 200mm (LG), 230mm (XL/XXL)
Seatpost Diameter 31.6mm
Seatpost Clamp Single bolt, 34.9mm
Rear Dropout / Hub Dimensions 12mm x 148mm (Boost)
Max. Tire Size 2.6″
Bottle Cage Mounts One inside front triangle (450ml Fidlock bottle only on XS/SM) plus accessory mounts under top tube
Warranty Lifetime frame, 2 years motor and battery
Weight With battery, size MD: 48 lb 10.5 oz (22070 g)
Without battery, size MD: 43 lb 10.4 oz (19800 g)
Miscellaneous
  • GiddyUp Four-Bar Horst-Link rear suspension design
  • Compatible with mixed (“Mullet”) setups via two-position flip chip
  • Can be ridden with or without battery installed
  • Internal cable routing
  • SRAM UDH (Universal Derailleur Hanger)
  • Power settings customizable via Fazua Ride60 Mobile App
  • Includes Fazua battery charger, tubeless valves and sealant

Geometry

Size XS SM MD LG XL XXL
Top Tube Length 523mm 553mm 586mm 614mm 642mm 671mm
Head Tube Angle 64 64 64 64 64 64
Head Tube Length 105mm 105mm 115mm 125mm 135mm 145mm
Seat Tube Angle 79.7 79.1 78.4 77.8 77.3 77.0
Seat Tube Length 410mm 410mm 410mm 430mm 460mm 490mm
Bottom Bracket Height 340mm (15mm drop) 350mm (25mm drop) 350mm (25mm drop) 350mm (25mm drop) 350mm (25mm drop) 350mm (25mm drop)
Chainstay Length 436mm 442mm 442mm 448mm 448mm 448mm
Wheelbase 1167mm 1208mm 1244mm 1280mm 1309mm 1338mm
Reach 410mm 430mm 460mm 485mm 510mm 535mm
Stack 595mm 620mm 628mm 637mm 646mm 655mm
Additional Info
  • XS has 27.5″ wheels (160mm fork, 558mm axle-to-crown, 37mm offset).
  • SM-XXL have 29″ wheels (160mm fork, 578mm axle-to-crown, 44mm offset).
  • Compatible with mixed (“Mullet”) setups (29″ front, 27.5″ rear) via two-position flip chip.
  • Saddle heights for effective seat tube angles: 560mm (XS), 600mm (SM), 660mm (MD), 720mm (LG), 780mm (XL), 820mm (XXL).
  • Seat tube offet at bottom bracket: 90mm (all sizes).

Reviews

There are no reviews yet.

Be the first to review “2025 Transition Relay Alloy Deore E-Bike Sea Salt”

Your email address will not be published. Required fields are marked *

Related products

2026 Orbea Rise LT M10 E-Bike
2026 Orbea Rise LT M10 E-Bike
$8,599.00 $150.00
2026 Mondraker F-Podium R Bike Carbon
2026 Mondraker F-Podium R Bike Carbon
$6,999.00 $148.00

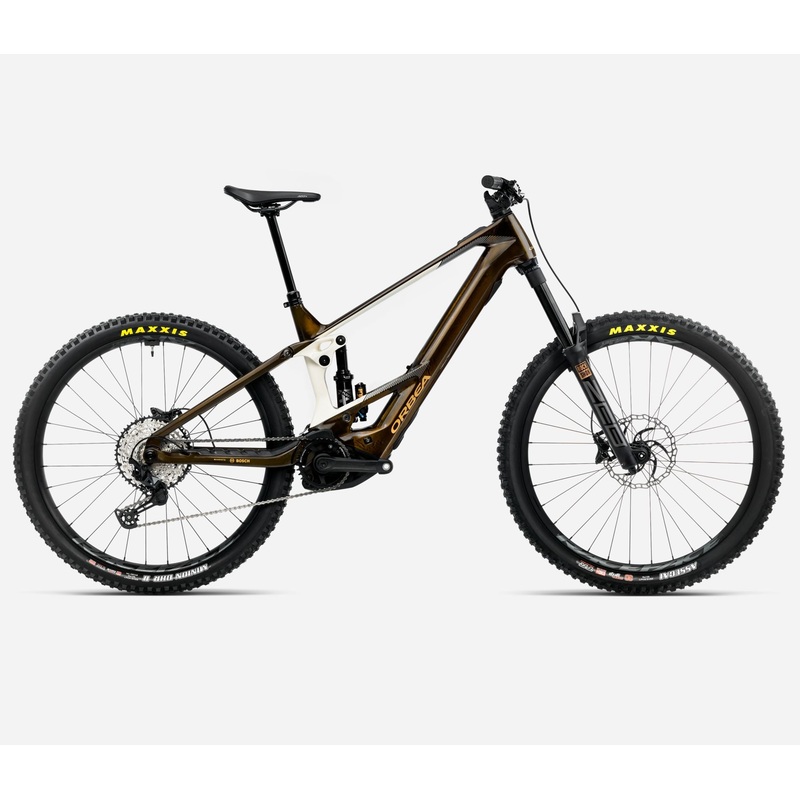

2026 Orbea Wild M20 E-Bike Caramel Carbon View
